Research on High Speed Boats in High Speed C.W.C.



High Speed Circulating Water Channel with 6.0m/sec of max. Velocity is used for testing high speed boats.

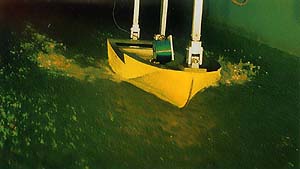

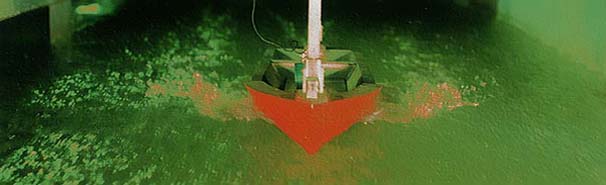

Model Test in High Speed C.W.C.

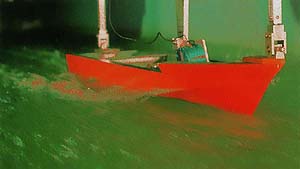

Model Test in High Speed C.W.C. Model Test in High Speed C.W.C.
Model Test in High Speed C.W.C.

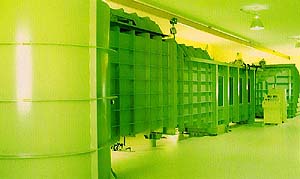

High Speed C.W.C.

High Speed C.W.C.
Main Body length 24,000mm
width 3,200mm


height 6,600mm
Measuring Section length 7,000mm
width 1,500mm


depth 1,200mm
Max. Velocity 6.0m/sec
