Development and Production of Measuring Instruments
|

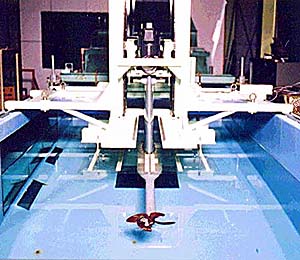

| Propeller Open Test System |
|
|
 This is developed by the laboratory to investigate the propeller open characteristics and to develop new type of propellers. Any sizes of propellers can be designed and manufactured in conformity with actual requirements. |
| P.M.M. (Planar Motion Mechanism) |
|
|
 |
| Dimensions |
| @@ |
length 1,076mm
width@4,500mm
height 1.050mm |
| Swaying Amplitude |
|
600mm |
| Yawing Amplitude |
|
35deg |
|
|
|

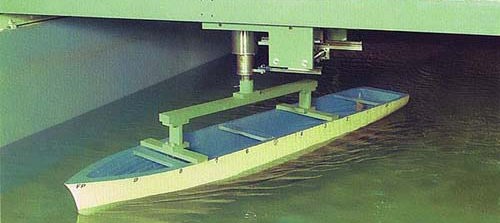

It is necessary to understand the ship's maneuverability for the safe and economical operating of ships.
Ship model is fixed to the P.M.M. Ship models are swayed yawed and fluid
dynamic forces which act on the model are measured. Based on the test data,
maneuverability of actual ship is estimated. |
|
|
